Have you ever come across a product that seamlessly combines two different materials into one cohesive part and wondered, “What is overmolding?” As a plastic product manufacturer, you might be searching for ways to improve durability, enhance design flexibility, or simply make your product stand out in a competitive market. Overmolding offers you precisely that opportunity. By molding one material on top of another, you can achieve a stronger bond between components, offer better ergonomic features, and create eye-catching designs that set your product apart.
In this ultimate guide, you will explore the key steps and considerations you need to know before diving into overmolding. You will learn the fundamentals of the process, how to choose the right materials, the benefits and challenges, as well as real-world applications that illustrate how overmolding can transform your manufacturing process. Let’s get started.
Learn what overmolding is

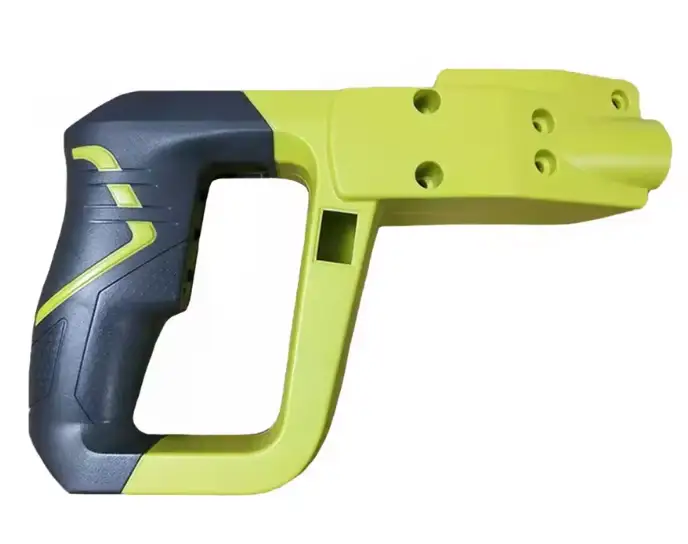

Overmolding, sometimes referred to as multi-shot or two-shot molding, is a manufacturing method where one material (often a softer plastic or rubber) is molded directly onto another material (usually a rigid plastic). By creating a chemical or mechanical bond between these materials, overmolding allows you to combine different properties into a single part.
How the process works
- First, a solid substrate (the first material) is formed, typically by injection molding.
- Then, the second material is molded over—or around—the substrate, resulting in a finished part that features both materials in their intended design.
In many cases, overmolding offers an ergonomic advantage. For example, a rigid plastic handle might be partially covered with a softer thermoplastic elastomer (TPE) for a more comfortable grip. This same technique is common in toothbrushes, power tools, and kitchen utensils.
Overmolding is also valuable if you want to integrate multiple functions within one piece. Instead of attaching multiple parts post-production, you can achieve color contrast, structural integrity, and additional functionality right from the molding process. If you are looking for a way to elevate your product’s performance and aesthetic appeal, incorporating overmolding can be a strategic move.
See why overmolding matters
Overmolding is significant because it gives you a competitive edge in both function and design. Your customers will appreciate products that are more comfortable to use, longer-lasting, or simply more visually appealing. Below are some of the main reasons why overmolding is so important.
Improves product performance
By melding two materials, overmolding delivers strength and flexibility where you need it most. You might choose a rigid core for structure, then apply a softer material where users interact with the product. This functional combination can reduce wear and tear, minimize vibration, and even help absorb shocks or impacts. The result is a more robust product that keeps customers satisfied.
Enhances brand differentiation
In crowded markets, little details can make a big difference. Overmolding allows you to incorporate unique patterns, vivid color contrasts, and custom textures that will help your product get noticed on store shelves or e-commerce listings. Visual appeal draws customers in, but comfort and user-friendly design keep them coming back.
Reduces assembly steps
When two materials are molded together in one streamlined process, you cut down on extra fabrication or assembly steps. Think of the manpower and time you save by eliminating the need to manually attach a grip or separate component. Overmolding consolidates tasks, shortening your production timeline and reducing the chance of errors from multiple assembly operations.
Choose the right materials
Picking the perfect combination of materials is critical to successful overmolding. You need them to bond well—in both a mechanical and chemical sense—and maintain the performance properties your application requires.
Substrate considerations
The “substrate” is your base material. Common choices include:
- Polycarbonate (PC) for its toughness and impact resistance
- Polypropylene (PP) for versatility and good chemical resistance
- Acrylonitrile butadiene styrene (ABS) for a balance of strength and machinability
Depending on factors like operating temperature, load requirements, and product lifespan, you might opt for one substrate over another. Always confirm your substrate can handle the second material’s injection temperature and pressure without warping or losing structural integrity.
Overmold material options
For the overmold layer, softer materials such as thermoplastic elastomers (TPEs) or silicone are popular due to their cushioning effect and comfortable grip. In certain cases, you might choose thermoplastic polyurethane (TPU) for exceptionally high wear and abrasion resistance.
- TPE: flexible, comfortable to grip, and offers good durability
- TPU: highly resistant to abrasion, oils, and solvents
- Silicone: excellent for heat resistance and flexible sealing applications
Before you finalize your selection, be sure to test the compatibility of your chosen materials by considering details like melt temperature and chemical bonding. Some manufacturers also incorporate adhesives or mechanical interlocks to further enhance the bond between substrate and overmold materials.
Walk through the overmolding process
While the concept seems straightforward, implementing overmolding effectively requires planning and precision. Familiarizing yourself with each step of the process can help you optimize your production line and reduce unnecessary rework.
- Substrate molding
- You begin by molding the substrate material in a standard injection molding machine. After this first shot is complete, the freshly formed part either remains on the same mold core or is transferred to a second station (depending on your equipment setup).
- On some machines, the mold can rotate automatically, aligning the substrate for the second shot seamlessly.
- Overmold application
- Next, the second material is injected over or around the substrate. This step might happen in the same mold using a specialized two-shot machine or on a separate machine if you have a multi-step approach.
- The second material flows into any grooves or interlocking features designed to help form a strong bond.
- Cooling and ejection
- Once the second shot has cooled, the overmolded part is ejected. To maintain consistent quality, it’s crucial to ensure both shots have thoroughly melded and cooled at the appropriate rates.
- Proper cooling times and ejection temperatures must be closely monitored to avoid warping, distortion, or unintended separation.
- Quality inspection
- A quick inspection can prevent costly mistakes from making their way down the production line. Look for gaps, bonding failures, or surface blemishes.
- If you detect an issue, you can adjust your injection speeds, temperature settings, or mold designs accordingly.
At each of these steps, attention to detail is key. A small miscalculation in timing or temperature can lead to parts that fail to bond properly or exhibit visible defects. By fine-tuning each step, you set yourself up for producing consistent, high-quality overmolded parts.
Consider important design guidelines
When it comes to maximizing the value of overmolding, thoughtful design goes a long way. After all, even the best materials can underperform if they aren’t used in the right way. Here are a few guidelines to keep in mind.
Incorporate mechanical interlocks
While certain material pairs bond chemically, you can strengthen that union by designing mechanical interlocks into your part. These interlocks are small grooves, holes, or ridges in the substrate that allow the second material to flow into and firmly grip the base. This approach is especially useful if you’re working with less compatible materials.
Control wall thickness
Significant variations in wall thickness between the substrate and the overmold can lead to uneven cooling or warping. Try to keep walls consistent wherever possible. If you need a thicker section, gradual transitions can help distribute stress more evenly.
Account for material shrinkage
Each material responds differently to cooling. You’ll want to make sure your geometry can tolerate slight differences in shrinkage rates without causing cracks or voids. Checking data sheets for both substrate and overmold materials will help you predict and design around this factor.
Don’t neglect parting lines
Parting lines are where the mold separates, and they can sometimes appear as raised or visible lines on your finished product. Careful mold design can minimize parting lines, ensuring a more polished look and better user comfort if those areas are likely to be handled or touched.
By incorporating these design recommendations early on, you’ll save time by reducing the likelihood of scrapped parts or unexpected redesigns. Good design sets the stage for an efficient, reliable overmolding process.
Avoid common pitfalls
Overmolding isn’t always foolproof. Several issues can arise, ranging from material incompatibilities to mold design oversights. By recognizing these pitfalls, you can sidestep setbacks and maintain a smoother manufacturing process.
Pitfall 1: Poor surface preparation
Even if two materials should be compatible, neglecting the substrate’s surface can lead to a compromised bond. Oils, debris, or moisture can prevent a good fusion. Ensuring a clean, dry surface is the simplest yet most effective step you can take.
Pitfall 2: Inadequate venting
When the second material is injected, air needs somewhere to escape. Without proper venting in the mold design, trapped air can create voids, incomplete fills, or unsightly defects. Strategically placed vents and gate designs help reduce these issues.
Pitfall 3: Temperature mismatch
Your second material requires a specific temperature range to fill the mold and bond properly. If the substrate is still too hot or too cold from the previous process, it can alter the flow or curing characteristics. Always verify the ideal temperature window for both materials and adjust your cycle times accordingly.
Pitfall 4: Overlooking hardness levels
Soft materials often need specific hardness ratings. If you choose a second material that’s too soft or too hard, you might end up with an uncomfortable grip, diminished cushioning, or even a part that delaminates under stress. Conduct a thorough analysis of your product’s end use to determine the ideal Shore hardness.
By paying close attention to common pitfalls, you’ll be well on your way to producing consistent, high-quality overmolded parts without the headaches of excessive rework.
Review real-world applications
One of the best ways to grasp the full potential of overmolding is to look at real-world examples. Different industries rely on overmolding to solve specific challenges or elevate product performance.
- Power tool manufacturers
Many power tools feature rigid plastic bodies with a rubberized overmold to boost grip and reduce vibrations. This combination lessens fatigue for workers, improves safety, and increases the tool’s overall lifespan. - Personal care products
Toothbrushes frequently feature soft overmolding on their handles for a comfortable, non-slip grip during use. The choice of vibrant colors and unique textures can also attract consumers looking for both comfort and style. - Medical devices
Overmolded components in medical devices can provide a sterile, user-friendly surface while retaining the sturdiness of a polymer base. Materials that stand up to repeated sterilization can be integrated seamlessly, offering longevity and hygiene. - Automotive interiors
Interior parts such as dashboard components and shift knobs often integrate overmolding to improve aesthetics and tactile experience. You often see subtle color contrasts or cushioned buttons that make for a more enjoyable driving experience.
In studying these examples, you can see how overmolding transforms not just the appearance, but the overall functionality of a product. These varied cases might inspire new ideas for your own designs, especially if the goal is to stand out in your particular niche.
Take the next step
Now that you have a deeper understanding of what is overmolding and how it can benefit your manufacturing process, you’re ready to move forward with confidence. Whether you are developing a brand-new product line or refining an existing range, overmolding can give you that extra edge in performance, comfort, and visual appeal.
Consider starting small: pick a product in your lineup that could benefit from a comfortable grip, an added seal, or a pop of color. From there, begin experimenting with compatible materials and refine your mold design to ensure an excellent bond. As you grow more familiar with the nuances, you can integrate overmolding into a wider range of products and truly make this technique a hallmark of your brand.
With the right preparation, you can bring remarkable innovation to your customers. Overmolding has the power to transform simple plastic parts into multifunctional, durable products—exactly what you need to make a lasting impression in your market.
